Pipe Rack DesignerDesign it in pipe. Get the parts list.
Enter width, depth, height and shelves. Pipe Rack Designer builds a 3D rack and gives you the exact single pipes by length and every fitting by shape — ready for the hardware store.
See it in action
Everything you need to plan a build

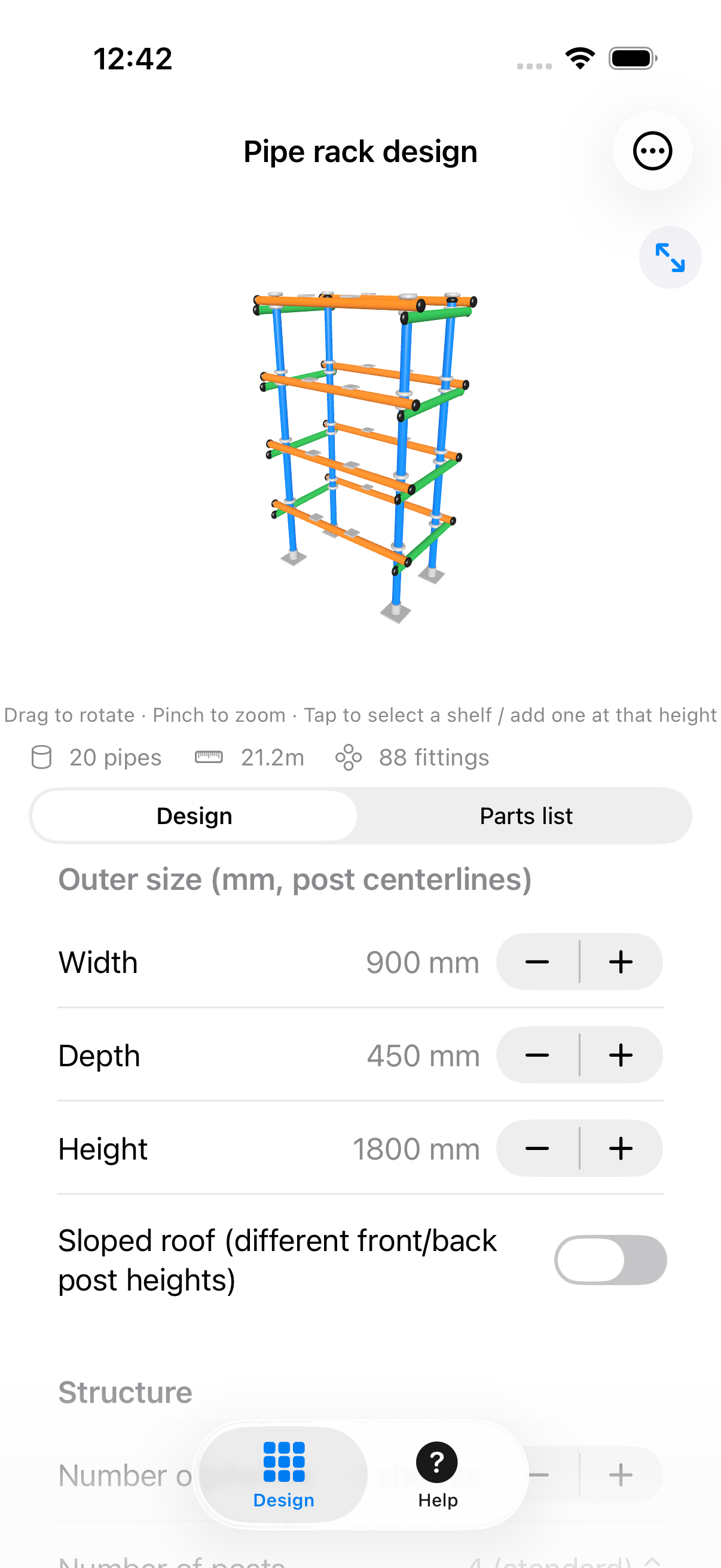

Just enter the dimensions
Type width, depth, height and the number of shelves. The full structure — posts, beams and every joint — is built for you instantly.

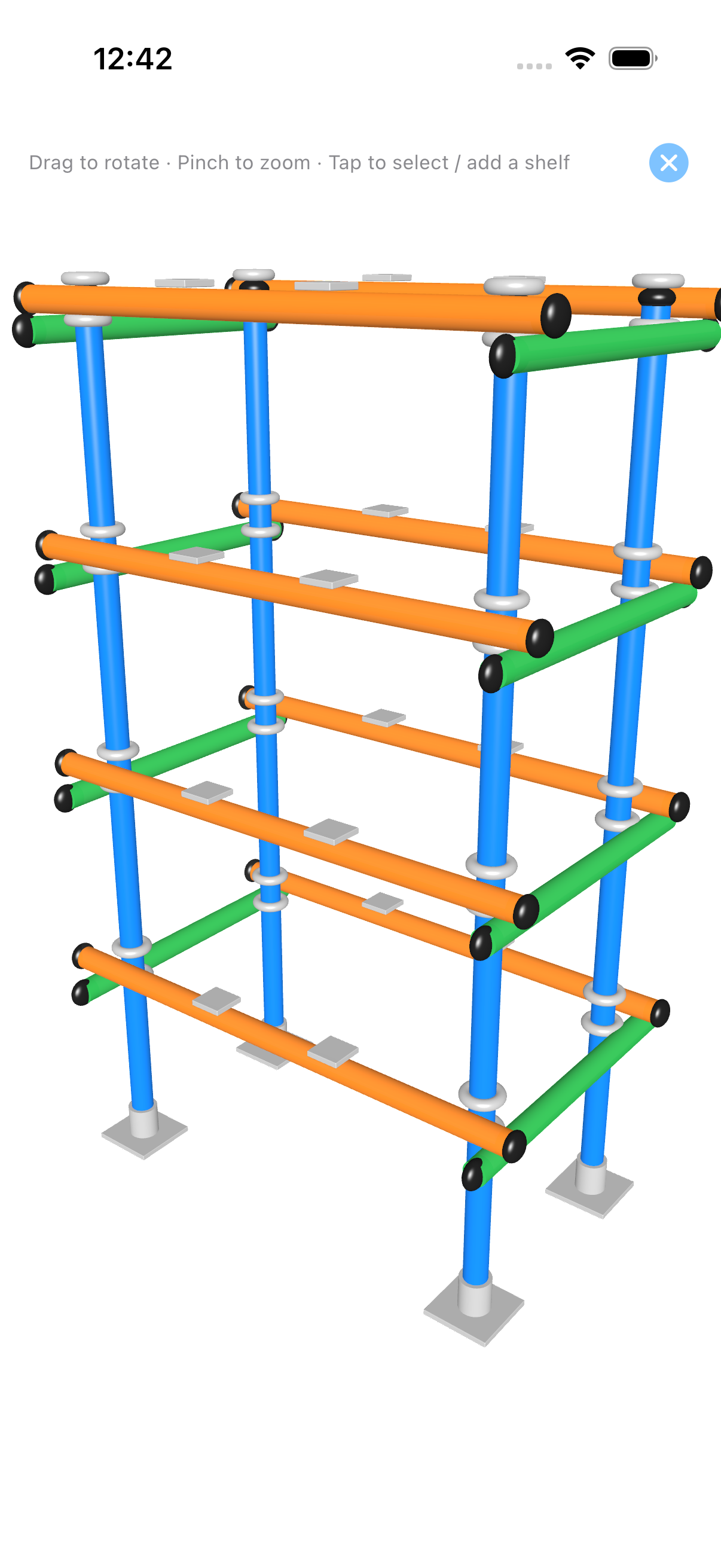

A live 3D model
Drag to rotate, pinch to zoom. See exactly how your rack goes together from any angle before you buy a single pipe.

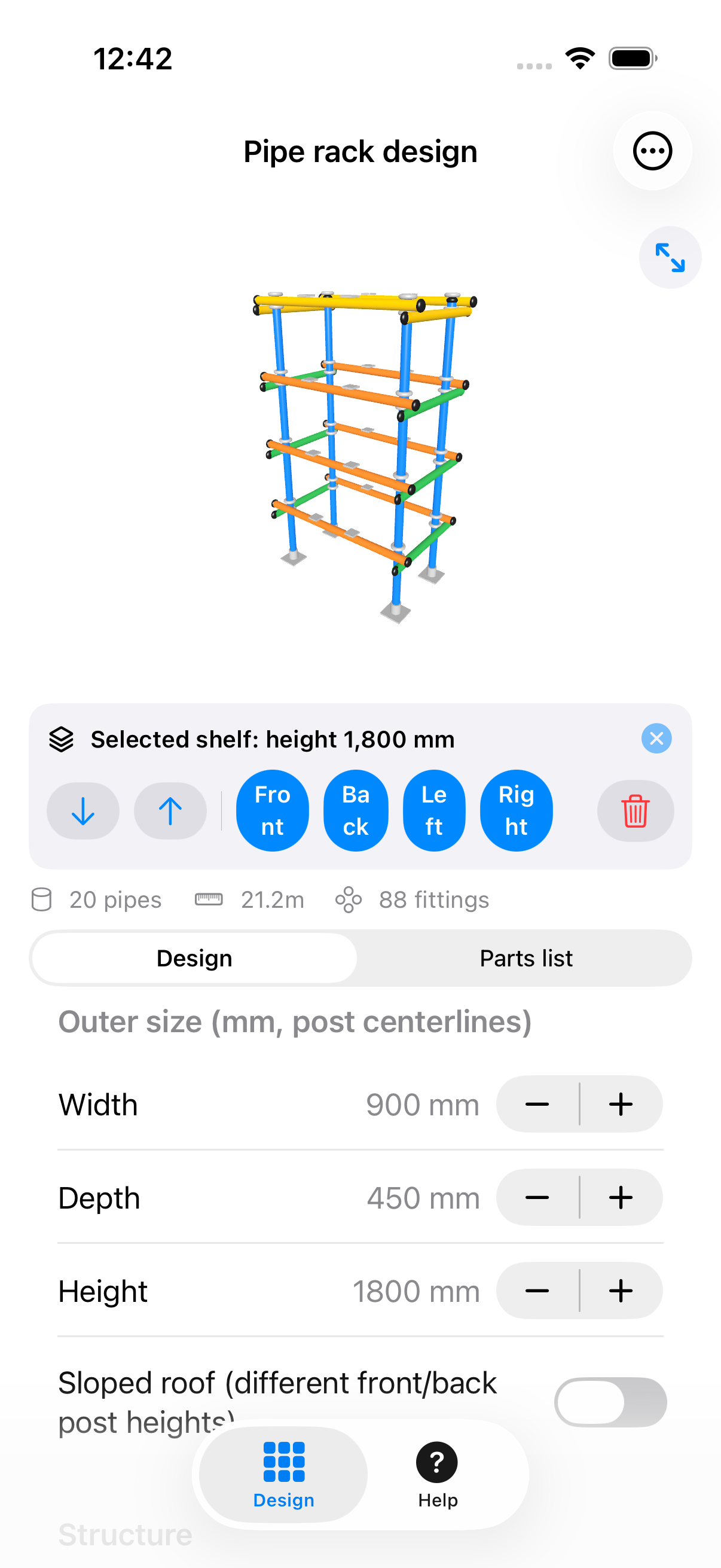

Tap to edit shelves
Tap the 3D model to add or select a shelf, move it up or down, or turn any of its four sides on and off.
Open-front designs
Turn off the front rail of a shelf to build open-front structures like a firewood rack — not just closed boxes.

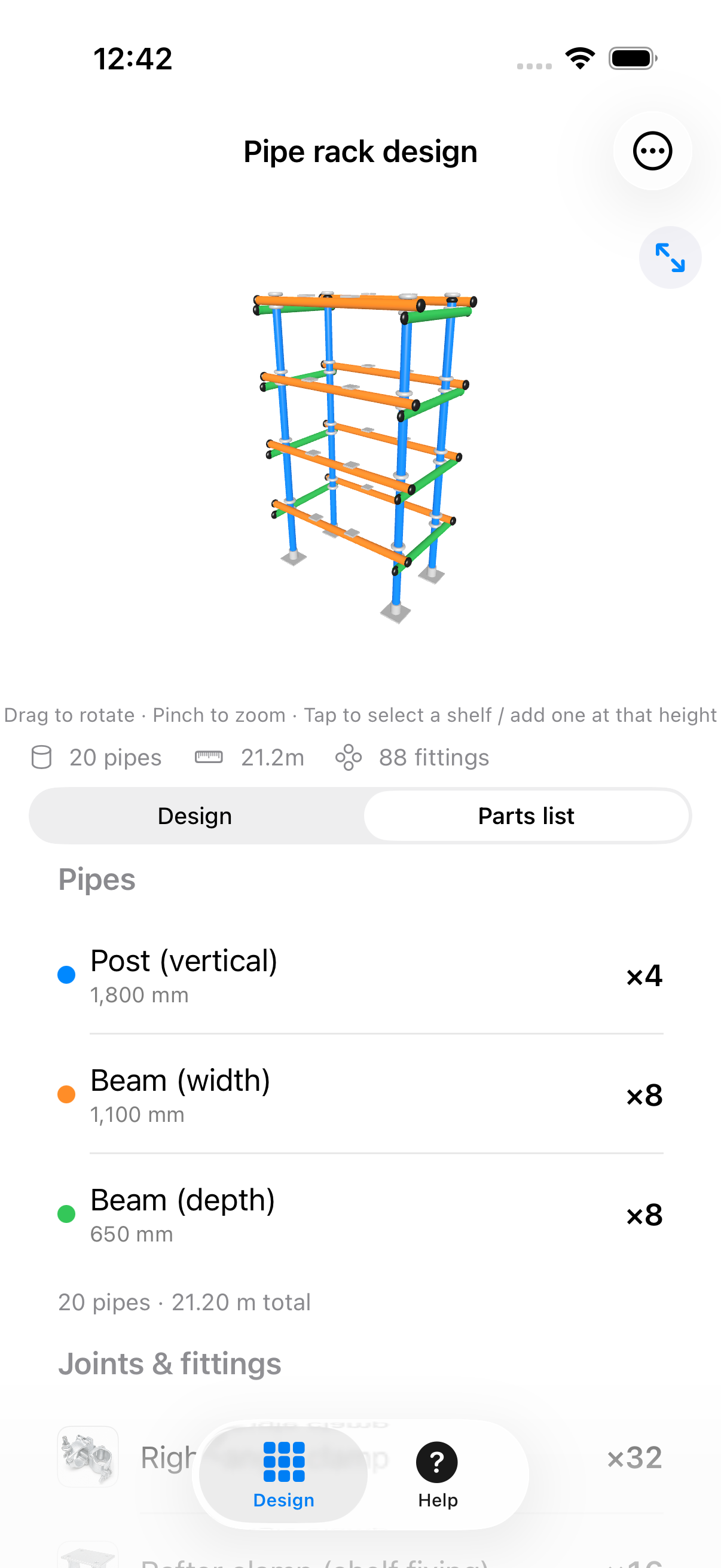

Pipes by length, fittings by shape
A clean parts list: single pipes grouped by length and count, joints grouped by their real shape and count.
Clamp or screw-joint
Switch joint systems and the fitting count updates. Clamps that lay pipes side by side, or cast joints that pipes plug into.
Real fitting shapes
Corner fittings are chosen by shape — L, T, 3-way corner, 4-way and 5-way — with split pipe lengths counted for screw joints.
Sloped-roof mode
Set different front and back post heights for a slanted, single-pitch top — perfect for a lean-to or a rain-shedding cover.
Copy the shopping list
Copy the whole parts list as text and take it straight to the hardware store.
iPhone & iPad
On iPad the 3D model and the parts list sit side by side, so you tweak sizes and watch the counts change at once.
Build almost anything from single pipe
A few measurements become a buildable pipe-and-fitting plan.
Storage shelving
Strong, adjustable shelving for a garage, warehouse or shed.
Firewood rack
Open-front design that keeps logs stacked and dry.
Workbench frame
A rigid pipe frame for a work top or tool bench.
Lean-to & covers
Sloped-roof mode for a simple rain- or sun-shedding structure.
Bike & gear racks
Custom-sized racks for bikes, tools and outdoor gear.
Greenhouse & plant stands
Frames and tiered stands for pots and seed trays.
Plan your next build in minutes
Offline. One-time purchase. No account, no ads, no subscription.
